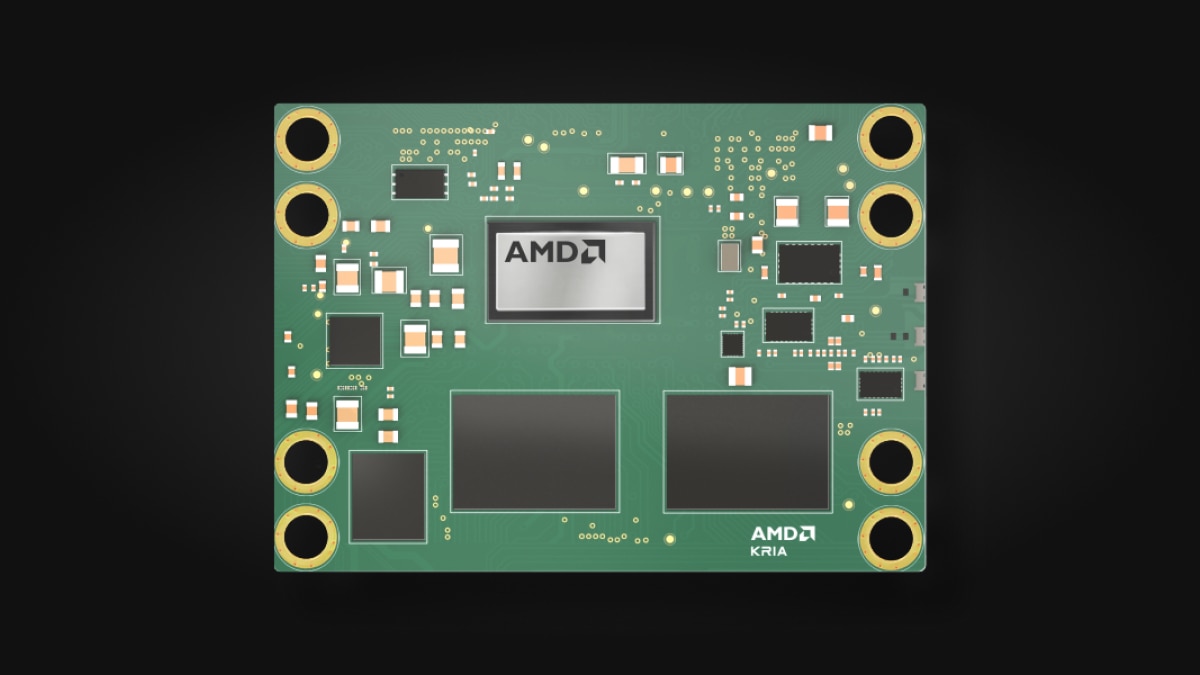

Explore AMD Kria K24 Commercial System-on-Module
PN: SM-K24-XCL2GC
Price: $250.00 USD
Lead Time: 6 weeks
SYNCED FROM AMD.COM · 2026-10-14
Overview
New to the Kria™ portfolio, the cost-optimized K24 SOM offers a smaller form factor and power efficiency for a wide range of target applications. Leverage its lower latency and deterministic performance for developing highly reliable end systems. The K24 SOM is available in Commercial and Industrial Grade variants for production deployment.
Device Support: Zynq UltraScale+ MPSoC
Specifications
| Power-efficient Compute | Develop power-efficient and highly deterministic industrial solutions for volume deployment. Up to 2X latency advantage vs. a standard system on chip like Texas Instruments AM64xx and similar products for single-axis drives applications 1 |
| Scalable & Adaptable | Smaller form factor and connector compatible with K26 SOM-enabling migration Future ready for HW and SW changes, offering adaptability for any sensor or interface as standards evolve |
| Easy Signal Processing | Pre-built HW acceleration with Vitis™ motor control libraries Out-of-the-box ready with KD240 Drives Starter Kits and the App Store as well as featuring support for more development flows, including Python™ and the MATLAB® Simulink® environment |
| Dimensions | 60 mm x 42 mm x 11 mm (with thermal enclosure) |
| Application Processor | Quad-core Arm ® Cortex ® -A53 MPCore™ at 1.33 GHz |
| Real-Time Processor | Dual-core Arm Cortex-R5F MPCore at 553 MHz |
| Graphics Processing Unit | Arm Mali ™ -400 MP2 at 600 MHz |
| Deep Learning Processor Unit (DPU) | INT8 (852 GOPs with B2304 DPU) |
| Trusted Platform Module (TPM) | Infineon 2.0 |
| Memory On-Chip* | 9.4 Mb on-chip SRAM |
| Memory On-SOM | 2 GB, 32-bit LPDDR4 @ 1066 Mbps w/ ECC configuration ** and 32 GB eMMC |
| High-Speed PS Connectivity (GTR) | PCIe ® Gen2 x4, 2x USB3.0, SATA 3.1, DisplayPort, 4x tri-mode gigabit Ethernet |
| General PS Connectivity (MIO) | 2x USB 2.0, 2x SD/SDIO, 2x UART, 2x CAN 2.0B, 2x I2C, 2x SPI, 4x 32b GPIO |
| GTR 6 Gbps Transceivers | 4 |
| PS MIO (1.8V) | 49 |
| PL High-density (HD) I/O (3.3V) | 23 |
| PL High-performance (HP) I/O (1.8V) | 56 |
| System Logic Cells (K) | 154 |
| DSP Slices | 360 |
| Typical Power | 5W |
| Maximum Power*** | 10W |
| Thermal Interface | Passive (clamshell thermal plates) |
| Commerical Speed & Temp Grade | -2 speed grade, low voltage and 0 to 85°C temperature range |
| Industrial Speed & Temp Grade | -2 speed grade, low voltage and –40 to 100°C temperature range |
