System-on-Modules

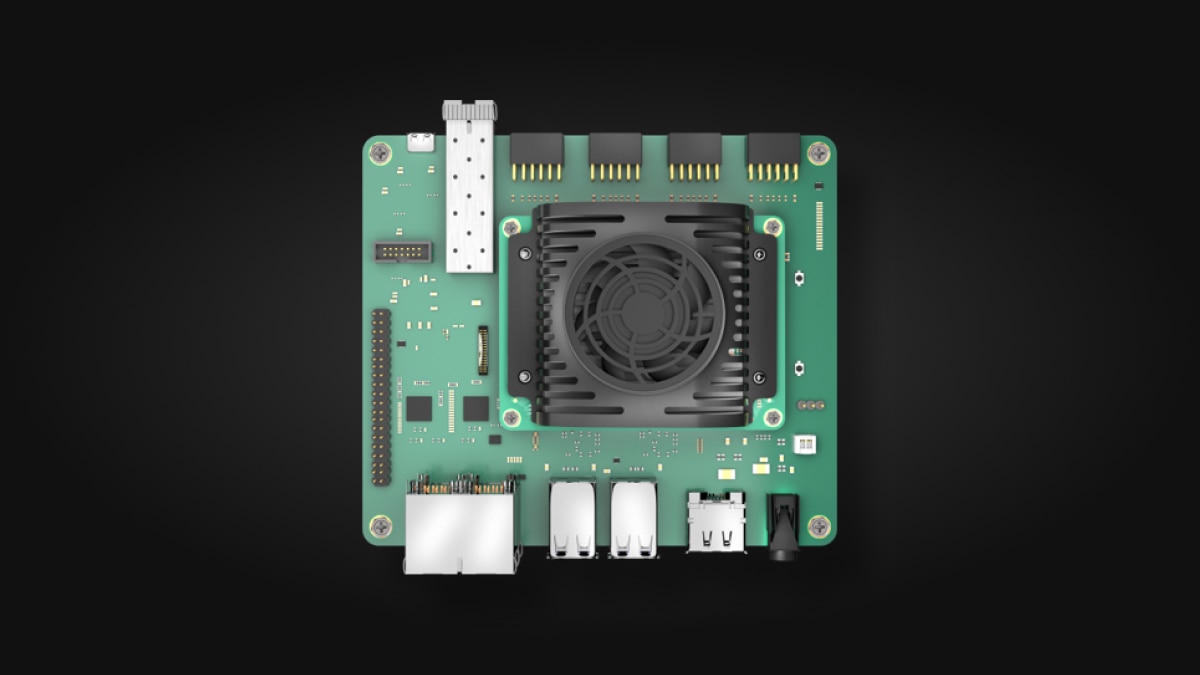

AMD KR260 Robotics Starter Kit
PN: SK-KR260-G
Price: $349.00 USD
Lead Time: 26 Weeks
SYNCED FROM AMD.COM · 2026-10-14
Overview
As the development platform for Kria K26 SOMs, the KR260 is built for robotics and industrial applications, complete with high performance interfaces and native ROS 2 support for ease of development by roboticists and software developers.
Device Support: Zynq UltraScale+ MPSoC
Specifications
| Optimize for Kria™ K26 SOM | 2x 240-pin connectors All SOM I/O available for sensor & network connectivity |
| High Performance Industrial Vision | SLVS-EC Rx 4x USB 3.0 for camera interfaces DisplayPort™ 1.2a |
| Real-Time Networking Interfaces | 4x RJ45 Ethernet Ports (10/100/1000) 1 SFP+ optics (10G) for 10 GE Vision |
| Expansion w/PMODs & RASBERRY PI Headers | Extend to any sensor or interface Broad Pmod ecosystem e.g., Wi-Fi adapters, RS485 |
| Device | Zynq™ UltraScale+™ MPSoC EV (XCK26) |
| Form Factor | SOM + Carrier Card + Thermal Solution |
| Starter kit Dimensions | 119 mm x 140 mm x 36 mm |
| Thermal Cooling Solution | Active (Fan + Heatsink) |
| System Logic Cells | 256K |
| Block RAM Blocks | 144 |
| UltraRAM Blocks | 64 |
| DSP Slices | 1.2K |
| Ethernet Interface | 4x 10/100/1000 Mb/s RJ-45s 1x SFP+ Cage |
| DDR Memory | 4 GB (4 x 512 Mb x 16 bit) [non-ECC] DDR4 |
| Primary Boot Memory | 512 Mb QSPI |
| Secondary Boot Memory | SDHC card |
| Device Security | Zynq UltraScale+ MPSoC hardware root of trust (RoT) in support of secure boot. Infineon TPM2.0 in support of measured boot. |
| Video | x1 SLVS-EC Gen2 x2 lane interface DisplayPort 1.2a Output for 1920 x 1080 at 60 Hz |
| I/O Expansion | x4 Pmod 12-pin interface x1 Raspberry Pi HAT header with 26 I/Os |
| USB® 3.0/2.0 Interfaces | x4 |
