System-on-Modules

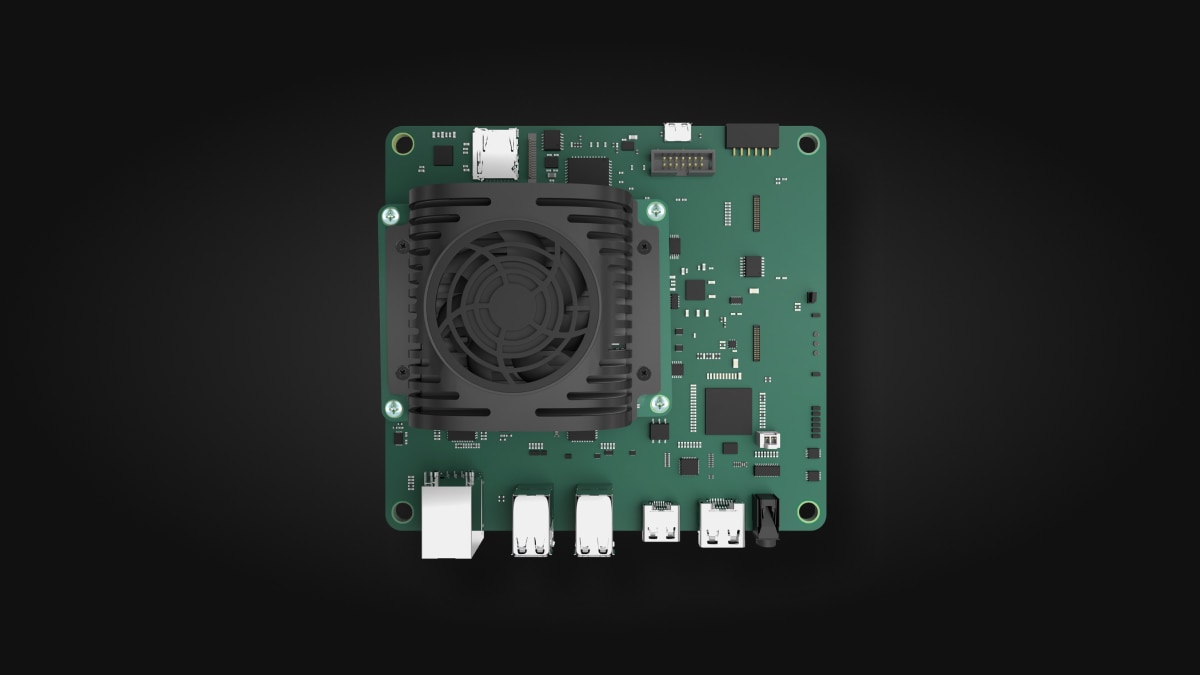

Kria KV260 Vision AI Starter Kit
PN: SK-KV260-G
Price: $249.00 USD
Lead Time: 26 weeks
SYNCED FROM AMD.COM · 2026-10-14
Overview
The development platform for AMD Kria™ K26 SOMs, the KV260 Starter Kit is built for advanced vision application development without requiring complex hardware design knowledge. Power supply sold separately.
Device Support: Zynq UltraScale+ MPSoC
Specifications
| Vison Ready | Multi-camera Support: Up to 8 interfaces 3 MIPI sensor interfaces, USB cameras Built-in ISP component (OnSemi) HDMI™, DisplayPort™ outputs |
| Flexible Connectivity | 1 Gb Ethernet USB 3.0 / 2.0 |
| Expandable | Extend to any sensor or interface Access Pmod ecosystem |
| Accessible | Low cost, enabling design exploration Available from AMD and distributors |
| Device | Zynq™ UltraScale+™ MPSoC |
| Form Factor | SOM + Carrier Card + Thermal Solution |
| Starter Kit Dimensions | 119 mm x 140 mm x 36 mm |
| Thermal Cooling Solution | Active (Fan + Heatsink) |
| System Logic Cells | 256K |
| Block RAM Blocks | 144 |
| UltraRAM Blocks | 64 |
| DSP Slices | 1.2K |
| Ethernet Interface | One 10/100/1000 Mb/s |
| DDR Memory | 4 GB (4 x 512 Mb x 16 bit) [non-ECC] |
| Primary Boot Memory | 512 Mb QSPI |
| Secondary Boot Memory | SDHC card |
| Device Security | Zynq UltraScale+ MPSoC hardware root of trust (RoT) in support of secure boot. Infineon TPM2.0 in support of measured boot. |
| Image Sensor Processor | OnSemi AP1302 ISP |
| IAS MIPI Sensor Interfaces | x2 (supports auto-focus) |
| Raspberry Pi Camera Interface | x1 |
| Pmod 12-pin Interface | x1 |
| USB® 3.0/2.0 Interface | x4 |
| DisplayPort™ 1.2a | x1 |
| HDMI™ 1.4 | x1 |
