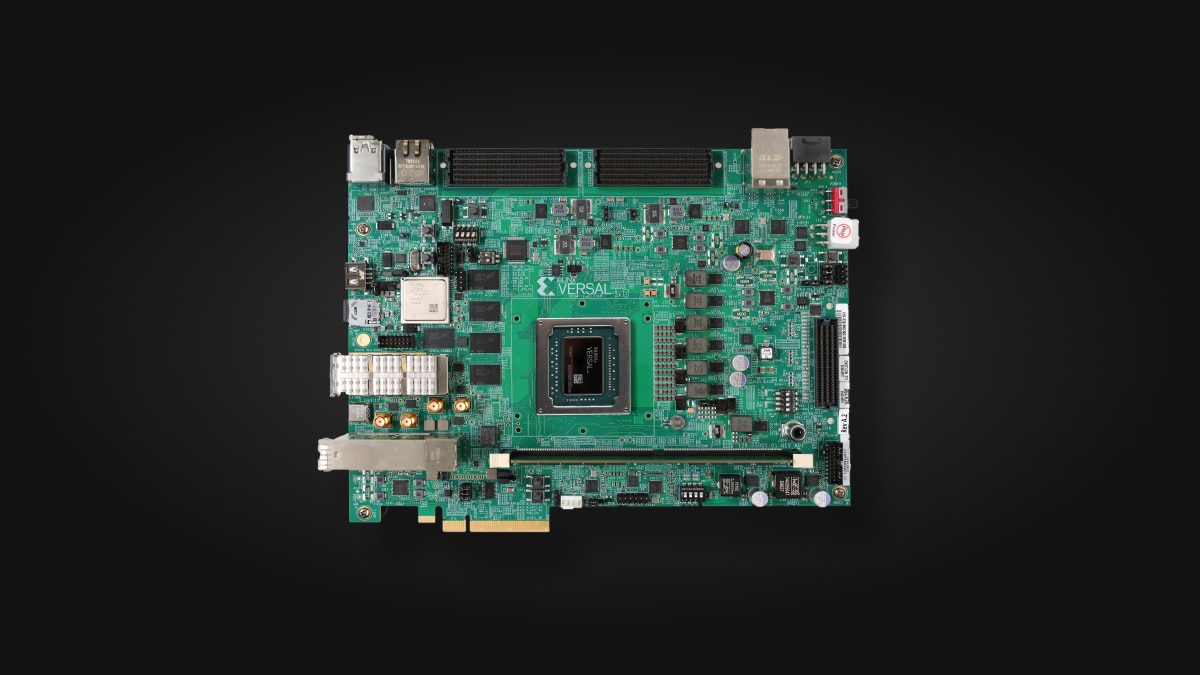

AMD Versal™ AI Core Series VCK190 Evaluation Kit
PN: EK-VCK190-G
Price: $13,195.00 USD
Lead Time: 8 weeks
SYNCED FROM AMD.COM · 2026-10-14
Overview
The AMD VCK190 is the first Versal™ AI Core series evaluation kit, enabling designers to develop solutions using AI and DSP engines capable of delivering over 100X greater compute performance compared to current server class CPUs. With a breadth of connectivity options and standardized development flows, the Versal AI Core series VC1902 adaptive SoC, providing the portfolio's highest AI inference and signal processing throughput for cloud, network, and edge applications.
Device Support: Versal AI Core
Specifications
| System Logic Cells (K) | 1,968 |
| LUTs | 899,840 |
| Application Processing Unit | Dual-Core Arm® Cortex®-A72 |
| Real-Time Processing Unit | Dual-Core Arm® Cortex®-R5F |
| Maximum I/O Pins | 770 |
| Length | 9.50 inches (24.13 cm) (¾ PCIe length) |
| Height | 7.477 inches (18.992 cm) |
| Operating Environmental Temperature | 0°C to +45°C |
| Storage Environmental Temperature | –25°C to +60°C |
| JTAG | Yes |
| QSPI | Yes |
| MicroSD | 2 |
| DDR4 DIMM | 8 GB @ 3200 Mb/s |
| User Pushbuttons | 6 |
| DIP Switches | 4 |
| User LEDs | 4 |
| SYSMON | Yes |
| System Controller | Yes |
| PMBUS | Yes |
| VITA 57.4 FMC+ (12 GTYs per connector) | 2 |
| PCIe® Gen4 x8 | 1 |
| UART to USB Bridge | 1 |
| CAN-FD Header | 1 |
| RJ-45 Tri-Speed Ethernet Connectors | 3 |
| SFP28 | 2 |
| QSFP28 | 1 |
| HDMI Video Output | 1 |
| HDMI Video Input | 1 |
| Programmable DDR4 DIMM | 1 |
| Programmable LPDDR4 Component | 2 |
| PCIe Reference Clock | 1 |
| HDMI | 1 |
| Programmable zSFP | 1 |
| Programmable HSDP | 1 |
| Programmable 1588 eCPRI | 4 |
| Programmable System Controller | 1 |
| 180W (12V) Power Supply | Yes |
| Power-on Reset | Yes |
