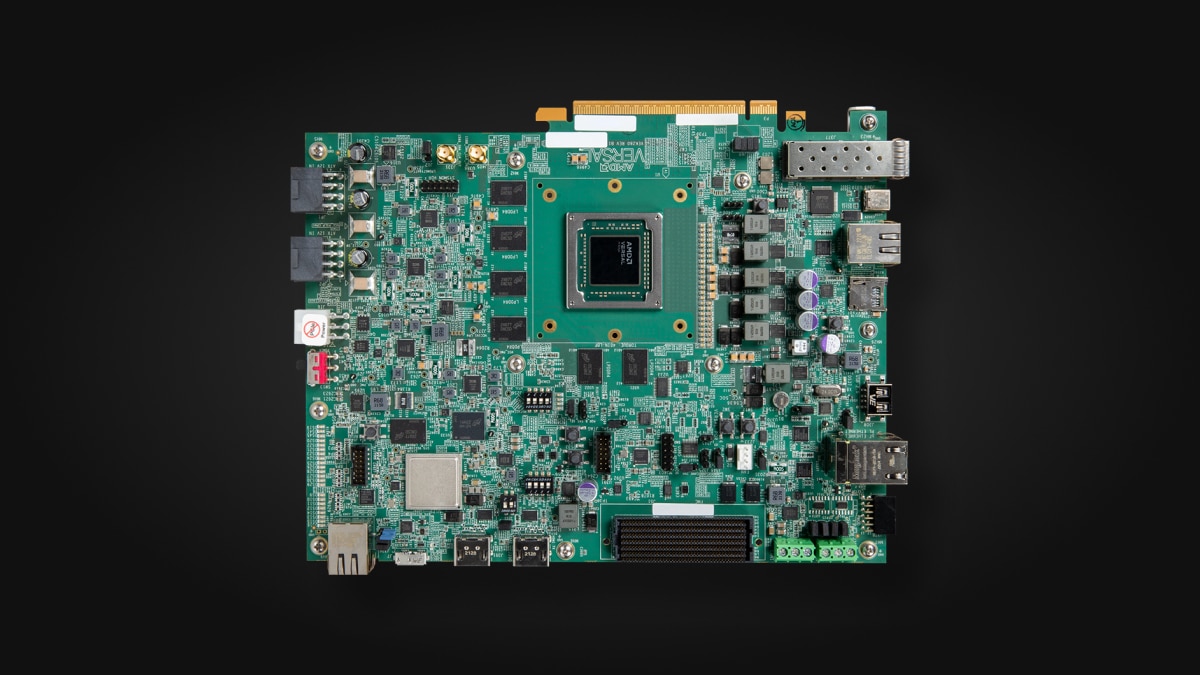

AMD Versal™ AI Edge Series VEK280 Evaluation Kit
Overview
The VEK280 Evaluation Kit is a new evaluation platform based on the AMD Versal™ AI Edge Series VE2802 device. The VEK280 board targets AIE-ML applications with increased compute performance, lower latency, and a higher level of integration enabled by the Versal AI Edge Series device. As an adaptive SoC, the Versal AI Edge Series allows developers to rapidly evolve their sensor fusion and AI algorithms while leveraging a scalable device portfolio for diverse performance and power profiles from edge to endpoint. As an evaluation platform, the primary focus for the VEK280 board is to enable evaluation and development of Versal AI Edge Series-based applications. The VEK280 board is not intended to be used in volume production and does not require complete reliability and production qualification.
Specifications
| AI Engine-ML Tiles | 304 |
| DSP Engines | 1,312 |
| System Logic Cells (K) | 1,139 |
| LUTs | 520,704 |
| Programmable NoC Ports | 21 |
| Application Processing Unit | Dual-core Arm® Cortex®-A72 |
| Real-Time Processing Unit | Dual-core Arm Cortex-R5F |
| Total AI Compute (INT8) | 228 TOPS |
| PCIe® w/DMA (CPM) | 1 x Gen4x16 |
| PCI Express® | 4 x Gen4x8 |
| 40G Multirate Ethernet MAC | 2 |
| Video Decoder Engines (VDEs) | 4 |
| Length | 9.47 inches (24.05 cm) |
| Height | 7.34 inches (18.64 cm) |
| JTAG | Yes |
| OSPI | Yes |
| MicroSD | Yes |
| LPDDR4 Component | 12 GB (6x 2 GB, 32-bit), 192-bit @ 3700 Mb/s |
| User Pushbuttons | 2 |
| DIP Switches | 4 |
| User LEDs | 4 |
| SYSMON | Yes |
| System Controller | Yes |
| PMBUS | Yes |
| VITA 57.4 FMC+ | 8 GTYPs, 68 user-defined signals |
| PCIe® Gen4x16 | 1 |
| Pmod (12-pin) | 1 |
| UART to USB Bridge | 1 |
| CAN-FD Buses | 2 |
| RJ-45 Tri-Speed Ethernet Connectors | 2 (PL); 1 (PS); 1 (SysCtrl) |
| SFP28 | 1 |
| HDMI™ 2.1 Video Output | 1 |
| HDMI 2.1 Video Input | 1 |
| Programmable LPDDR4 Component | 1 |
| Programmable SFP | 1 |
| Programmable FMC+ | 1 |
| PCIe Clock Buffer | 1 |
| HDMI | 1 |
| 1588 Clock | 25 MHz on board (Master Mode) External (Slave Mode) |
| System Controller Reference Clock (Fixed) | 1 |
| 156.25 MHz HSDP (Fixed) | 1 |
| 180W (12V) Power Supply | Yes |
| Power-on Reset | Yes |
