AMD Versal™ HBM Series VHK158 Evaluation Kit
PN: EK-VHK158-G
Price: Contact us
Lead Time: On request
SYNCED FROM AMD.COM · 2026-10-14
Overview

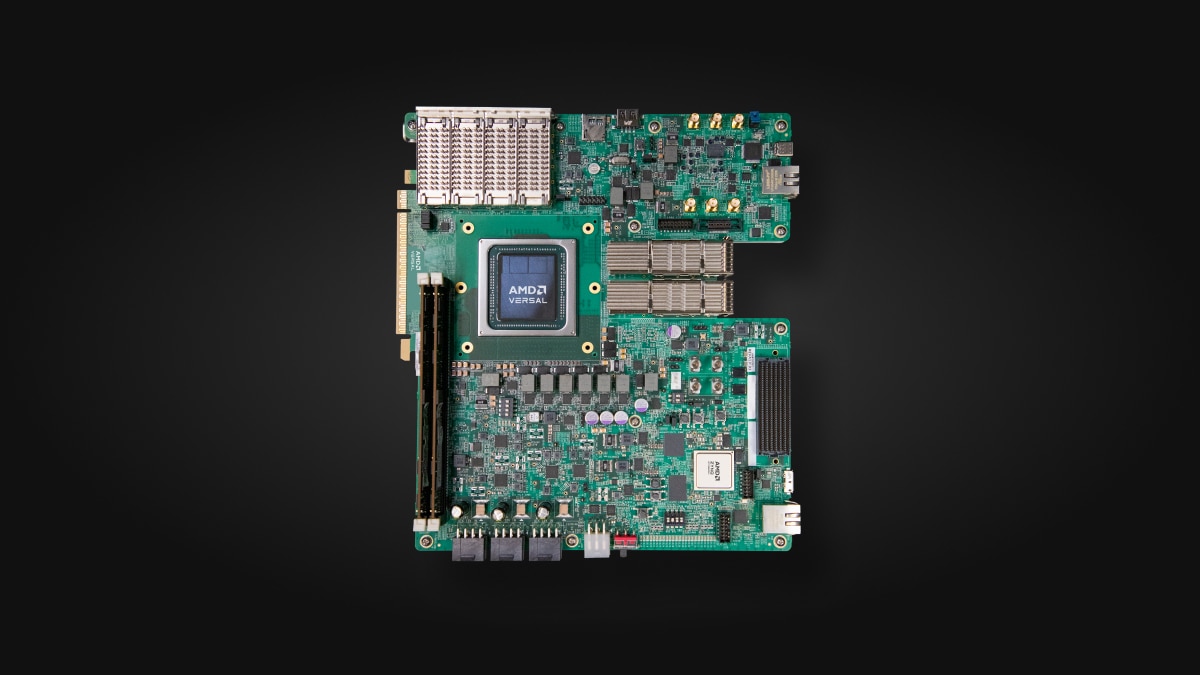

The VHK158 Evaluation Kit, equipped with the AMD Versal™ HBM VH1582 adaptive SoC, offers convergence of memory, compute, and connectivity with 32G HBM and 112G PAM4 transceivers. The VHK158 Evaluation Kit is an evaluation platform for the Versal™ HBM Series VH1582 device designed to keep up with the higher memory needs of compute intensive, memory bound applications, providing adaptable acceleration for data center, wired networking, test & measurement, and aerospace & defense applications. The VHK158 board’s primary focus is to enable demonstration and evaluation of the VH1582 silicon and support customer application development
Device Support: Versal HBM
Specifications
| DSP Engines | 7,392 |
| System Logic Cells (K) | 3,837 |
| LUTs | 1,753,984 |
| HBM DRAM | 32 GB |
| HBM Bandwidth | 819.2 GB/s |
| Application Processing Unit | Dual-core Arm® Cortex®-A72 |
| Real-Time Processing Unit | Dual-core Arm Cortex-R5F |
| GTM Transceivers (56G (112G)) | 20 (10) |
| Integrated Block for PCIe 5.0 w/ DMA (CPM5) | 2 x Gen5x8 |
| PCI Express® (PLPCIE5) | 8 x Gen5x4 |
| 100G Multirate Ethernet MAC | 4 |
| 600G Ethernet MAC | 1 |
| 400G High-Speed Crypto Engine | 2 |
| Length | 9.705 inches (21.961 cm) |
| Height | 8.649 inches (24.651 cm) |
| Thickness | 65.56 mil ±8% (1.6652 mm ±8%) |
| PCIe® Slots | PCIe Gen5 x8, Gen3/4 x16 |
| JTAG | Yes |
| OSPI | Yes |
| MicroSD | Yes |
| DDR4 DIMM | 32 GB (2x 16 GB), 72-bit @ 3200 Mb/s |
| MicroSD Socket (Versal device) | Yes |
| User Pushbuttons | 2 |
| DIP Switches | 4 |
| User LEDs | 4 |
| SYSMON | Yes |
| System Controller | Yes |
| PMBUS | Yes |
| VITA 57.4 FMC+ | 8 GTYPs, 68 user-defined signals |
| USB JTAG | 1 |
| USB C | 1 |
| RJ-45 Tri-Speed Ethernet Connectors | 2 |
| QSFP28 | 4 |
| QSFP-DD | 2 |
| Programmable DDR4 Clocks | 2 |
| PCIe Reference Clock | 1 |
| Programmable GT Clocks | 12 |
| Programmable HBM Clocks | 2 |
| Programmable 1588 eCPRI (SMA Connector) | 6 |
| Programmable System Controller | 1 |
| 180W (12V) Power Supply | Yes |
| Power-on Reset | Yes |
