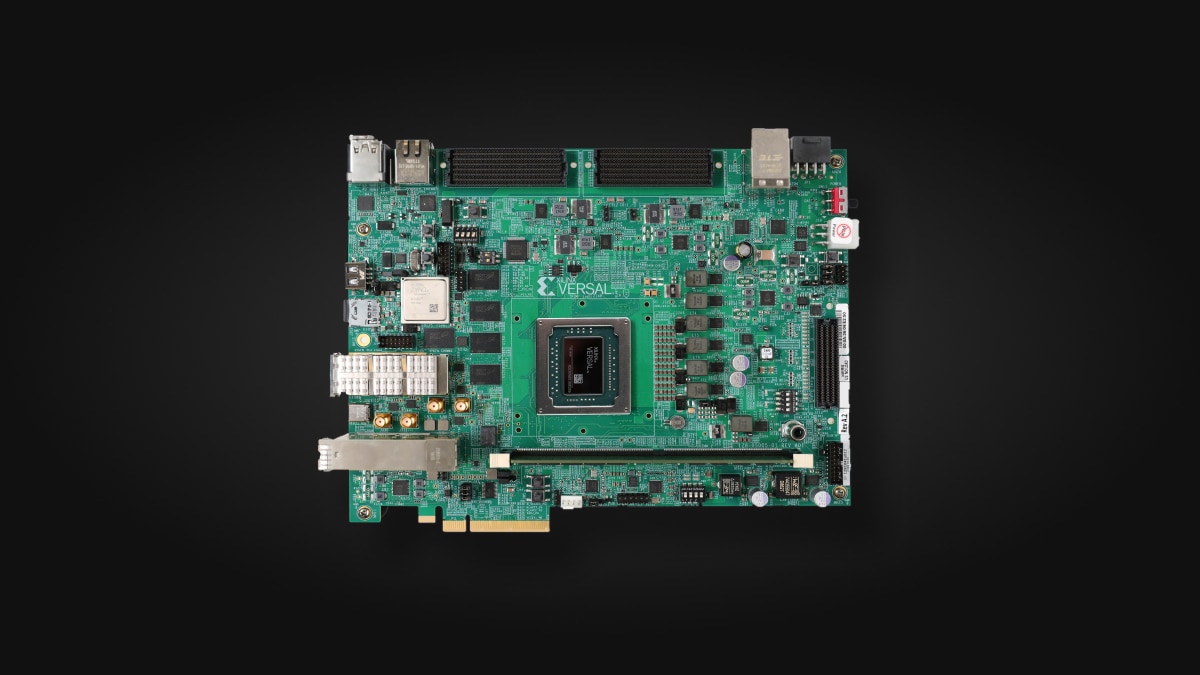

AMD Versal™ Prime Series VMK180 Evaluation Kit
PN: EK-VMK180-G
Price: $9,345.00 USD
Lead Time: 8 weeks
SYNCED FROM AMD.COM · 2026-10-14
Overview
The AMD Versal™ Prime series VMK180 evaluation board features the Versal Prime series VM1802 adaptive SoC, which combines a software programmable silicon infrastructure with world-class compute engines and a breadth of connectivity options to accelerate diverse workloads in a wide range of markets.
Device Support: Versal Prime
Specifications
| DSP Engines | 1,968 |
| System Logic Cells (K) | 1,968 |
| LUTs | 899,840 |
| Application Processing Unit | Dual-Core Arm® Cortex®-A72 |
| Real-Time Processing Unit | Dual-Core Arm Cortex-R5F |
| Maximum I/O Pins | 770 |
| Programmable NoC Ports | 28 |
| Integrated Memory Controllers | 4 |
| Length | 9.50 inches (24.13 cm) (¾ PCIe length) |
| Height | 7.477 inches (18.992 cm) |
| Thickness | 66.87 mil ±10% (1.698 mm ±10%) |
| Operating Environmental Temperature | 0°C to +45°C |
| Storage Environmental Temperature | –25°C to +60°C |
| JTAG | Yes |
| OSPI | Yes |
| MicroSD | 2 |
| DDR4 DIMM | 8 GB @ 3200 Mb/s |
| LPDDR4 Component | 8 GB (4x16 Gb) @ 3900 Mb/s |
| MicroSD Socket | 16 GB |
| User Pushbuttons | 6 |
| DIP Switches | 4 |
| User LEDs | 4 |
| SYSMON | Yes |
| System Controller | Yes |
| PMBUS | Yes |
| VITA 57.4 FMC+ (12 GTYs per connector) | 2 |
| PCIe® Gen4 x8 | 1 |
| UART to USB Bridge | 1 |
| CAN-FD Header | 1 |
| RJ-45 Tri-Speed Ethernet Connectors | 3 |
| SFP28 | 2 |
| QSFP28 | 1 |
| HDMI Video Output | 1 |
| HDMI Video Input | 1 |
| Programmable DDR4 DIMM | 1 |
| Programmable LPDDR4 Component | 2 |
| PCIe Reference Clock | 1 |
| HDMI | 1 |
| Programmable zSFP | 1 |
| Programmable HSDP | 1 |
| Programmable System Controller | 1 |
| 180V (12V) Power Supply | Yes |
| Power-on Reset | Yes |
