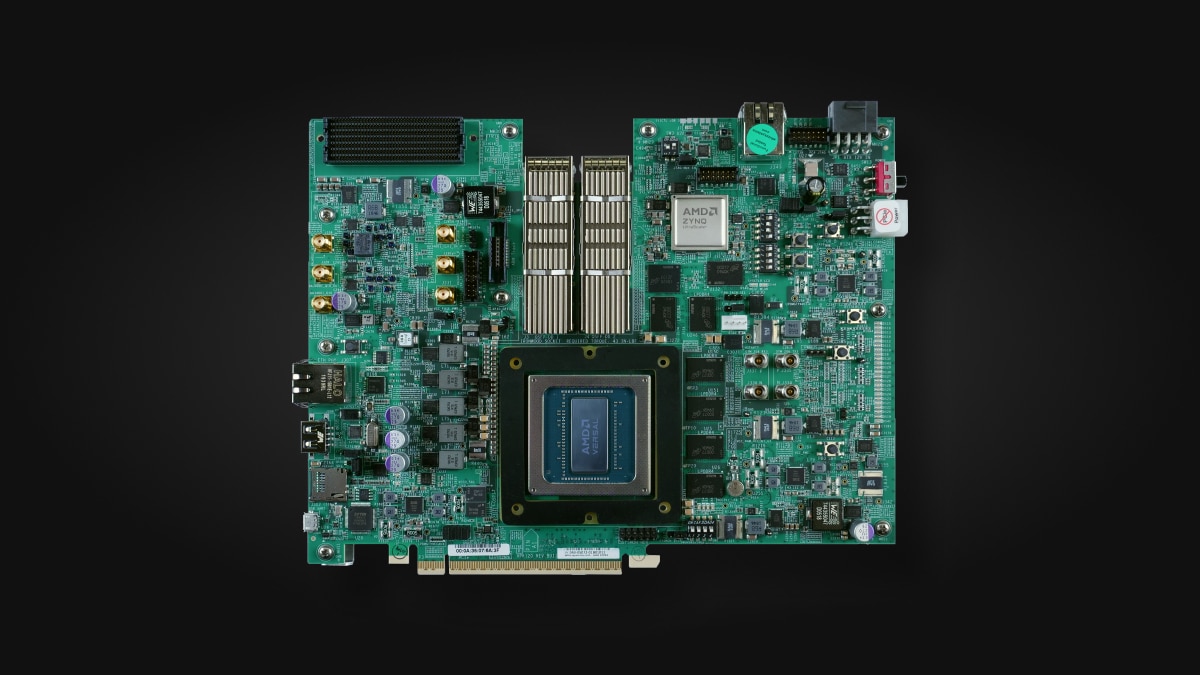

AMD Versal™ Premium Series VPK120 Evaluation Kit
PN: EK-VPK120-G
Price: $11,994.00 USD
Lead Time: 8 weeks
SYNCED FROM AMD.COM · 2026-10-14
Overview
The VPK120 Evaluation Kit, equipped with the AMD Versal™ Premium Series VP1202 adaptive SoC, offers networked, power-optimized cores paired with multiple high-speed connectivity options. The kit is built for network and cloud applications requiring massive serial bandwidth, security, and compute density. The kit features the Versal Premium VP1202 adaptive SoC, which integrates 100+ Gb/s PAM4 transceivers, PCIe® Gen5 with DMA & CCIX, 100G Multirate Ethernet cores, 600G Ethernet cores, 400G High-Speed Crypto Engines, and more.
Device Support: Versal Premium
Specifications
| System Logic Cells (K) | 1,969 |
| LUTs | 900,224 |
| DSP Engines | 3,984 |
| Application Processing Unit | Dual-core Arm® Cortex®-A72 |
| Real-Time Processing Unit | Dual-core Arm Cortex-R5F |
| GTM Transceivers (58G (100+G)) | 20 (10) |
| Integrated Block for PCIe 5.0 w/ DMA (CPM5) | 2 x Gen5x8 |
| PCI Express® | 2 x Gen5x4 |
| 100G Multirate Ethernet MAC | 2 |
| 600G Ethernet MAC | 1 |
| 400G High-Speed Crypto Engine | 1 |
| XPIO DDR + PL | 570 |
| Length | 9.50 inches (24.13 cm) (¾ PCIe length) |
| Height | 7.478 inches (18.994 cm) |
| Thickness | 64.24 mil ±08% (1.632 mm ±10%) |
| PCIe® | PCIe endpoint 16 lane edge connector |
| JTAG | Yes |
| QSPI | Yes |
| MicroSD | Yes |
| LPDDR4 Component | 6 x 2 GB @ 3900 Mb/s |
| MicroSD Socket (Versal device) | 16 GB |
| User Pushbuttons | 7 |
| DIP Switches | 4 |
| User LEDs | 4 |
| SYSMON | Yes |
| System Controller | Yes |
| PMBUS | Yes |
| VITA 57.4 FMC+ | One (8 GTY) |
| PCIe x16* | One connector |
| USB JTAG | 1 |
| USB 3.0 | 1 |
| RJ-45 Tri-Speed Ethernet Connectors | 2 |
| QSFP-DD | 2 |
| Programmable LPDDR4 Component | 1 |
| PCIe Reference Clock | 1 |
| Programmable 1588 eCPRI (SMA Connector) | 6 |
| Programmable System Controller | 1 |
| 180W (12V) Power Supply | Yes |
| Power-on Reset | Yes |
