Evaluation Boards

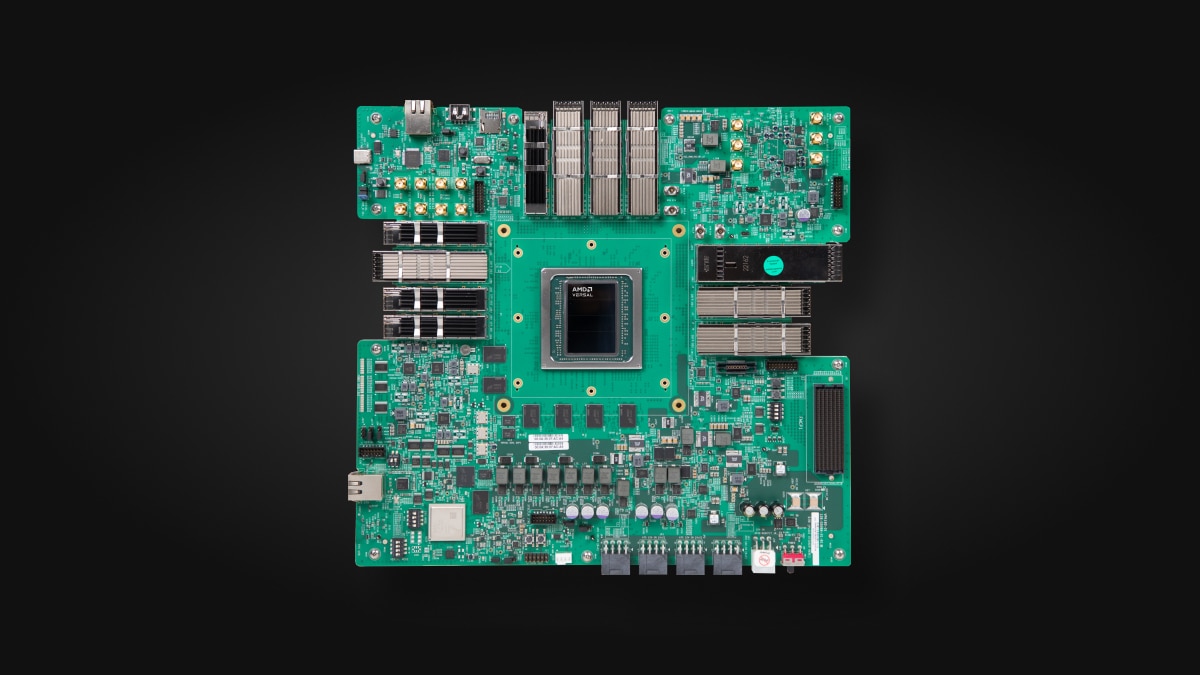

AMD Versal™ Premium Series VPK180 Evaluation Kit
PN: EK-VPK180-G
Price: $17,995.00 USD
Lead Time: 8 weeks
SYNCED FROM AMD.COM · 2026-10-14
Overview
The VPK180 Evaluation Kit, equipped with the AMD Versal™ Premium VP1802 adaptive SoC, delivers standout performance with over 7M logic cells, 112G PAM4 transceivers, and hardened, power-optimized cores for multi-terabit interfacing. Equipped with a Versal Premium Series VP1802 adaptive SoC, the VPK180 Evaluation Kit offers over 4 Tb/s of total bandwidth using 112G PAM4 transceivers and multiple industry-standard connectors. The kit comes with a breadth of connectivity options, development tools, and example designs to accelerate prototyping of the most demanding compute and networking systems across multiple markets.
Device Support: Versal Premium
Specifications
| System Logic Cells (K) | 7,352 |
| LUTs | 3,360,896 |
| DSP Engines | 14,352 |
| Application Processing Unit | Dual-core Arm® Cortex®-A72 |
| Real-Time Processing Unit | Dual-core Arm Cortex-R5F |
| 100G Multirate Ethernet MAC | 8 |
| 600G Ethernet MAC | 7 |
| 400G High-Speed Crypto Engine | 4 |
| Length | 11.504 inches (29.22016 cm) |
| Height | 12.360 inches (31.394 cm) |
| Thickness | 131.5 mil ±10% (3.3401 mm ±10%) |
| JTAG via connector | Yes |
| JTAG via USB connector | Yes |
| QSPI (dual) | Yes |
| MicroSD | Yes |
| LPDDR4 Component | 12 GB (6x 2 GB, 32-bit), 192-bit @ 3900 Mb/s |
| MicroSD Socket (Versal device) | Yes |
| User Pushbuttons | 2 |
| DIP Switches | 4 |
| User LEDs | 4 |
| SYSMON | Yes |
| System Controller | Yes |
| PMBUS | Yes |
| VITA 57.4 FMC+ | 8 GTYPs, 68 user-defined signals |
| USB JTAG | 1 |
| USB 3.0 | 1 |
| RJ-45 Tri-Speed Ethernet Connectors | 2 |
| SFP-DD | 4 |
| QSFP-DD | 6 |
| OSFP | 1 |
| Programmable LPDDR4 Component | 1 |
| Programmable 1588 eCPRI (SMA Connector) | 6 |
| Programmable System Controller | 1 |
| 180W (12V) Power Supply | Yes |
| Power-on Reset | Yes |
