Evaluation Boards

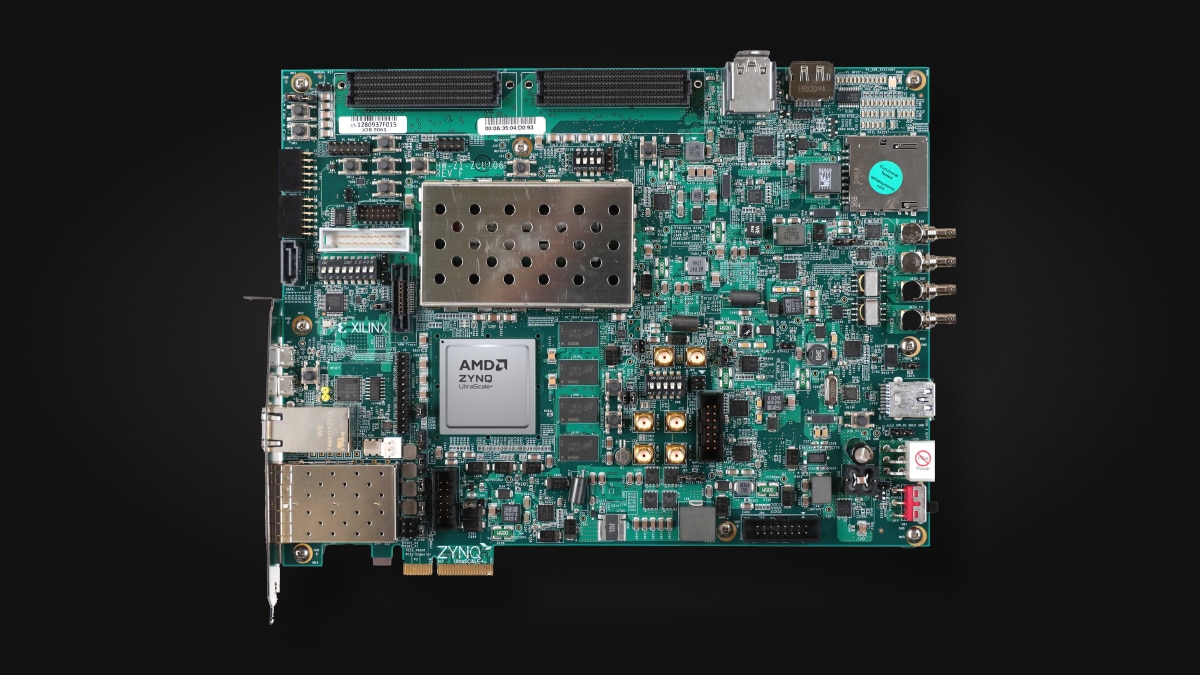

AMD Zynq™ UltraScale+™ MPSoC ZCU106 Evaluation Kit
PN: EK-U1-ZCU106-G
Price: $3,234.00 USD
Lead Time: 8 weeks
SYNCED FROM AMD.COM · 2026-10-14
Overview
The ZCU106 Evaluation Kit enables designers to jumpstart designs for video conferencing, surveillance, Advanced Driver Assisted Systems (ADAS) and streaming and encoding applications. This kit features an AMD Zynq™ UltraScale+™ MPSoC EV device and supports all major peripherals and interfaces, enabling development for a wide range of applications. The included ZU7EV device is equipped with a quad-core Arm® Cortex®-A53 applications processor, dual-core Cortex-R5 real-time processor, Mali™-400 MP2 graphics processing unit, 4KP60 capable H.264/H.265 video codec, and 16nm FinFET+ programmable logic.
Device Support: Zynq UltraScale+ MPSoC
Specifications
| System Logic Cells (K) | 504 |
| Memory | 38Mb |
| DSP Slices | 1,728 |
| Video Codec Unit | 1 |
| Maximum I/O Pins | 464 |
