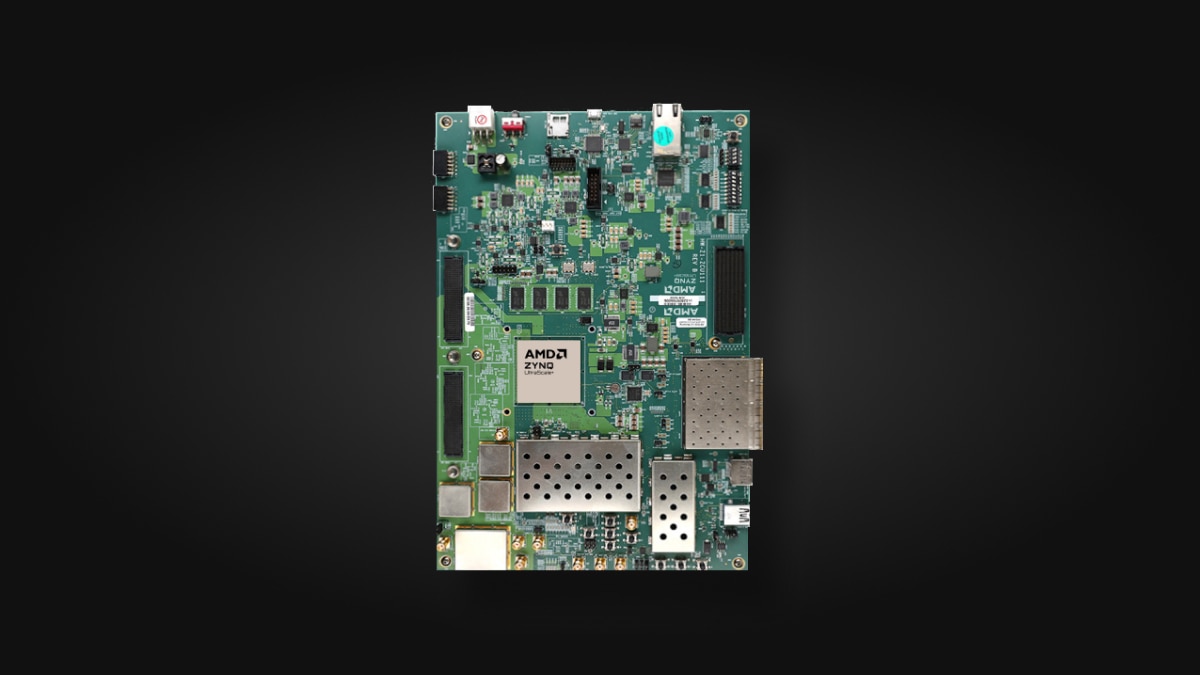

AMD Zynq™ UltraScale+™ RFSoC ZCU111 Evaluation Kit
PN: EK-U1-ZCU111-G
Price: $14,995.00 USD
Lead Time: 8 weeks
SYNCED FROM AMD.COM · 2026-10-14
Overview
The AMD Zynq™ UltraScale+™ RFSoC ZCU111 evaluation kit enables designers to jumpstart RF-Class analog designs for wireless, cable access, early-warning(EW)/radar, and other high-performance RF applications. This kit features a Zynq UltraScale+ RFSoC supporting 8 12-bit 4.096GSPS ADCs, 8 14-bit 6.554GSPS DACs, and 8 soft-decision forward error correction (SD-FECs). Complete with Arm® Cortex®-A53 and Arm Cortex-R5 subsystems, UltraScale+ programmable logic, and the highest signal processing bandwidth in a Zynq UltraScale+ device, this kit provides a rapid, comprehensive RF Analog-to-Digital signal chain prototyping platform.
Device Support: Zynq UltraScale+ RFSoC
Specifications
| 12-bit, 4.096GSPS RF-ADC | 8 |
| 14-bit, 6.554GSPS RF-DAC | 8 |
| System Logic Cells (K) | 930 |
| Memory (Mb) | 60.5 |
| DSP Slices | 4,272 |
| 33G Transceivers | 16* |
| Maximum I/O Pins | 371 |
| Height | 11.811 inch (30.0 cm) |
| Width | 7.874 inch (20.0 cm) |
| Thickness (+/-5%) | 0.10799 inches (0.2743 cm) |
| # of 12-bit ADCs | 8 |
| Max Rate (GSPS) | 6.554 |
| # of 14-bit DACs | 8 |
| SD-FEC | 8 |
| PS DDR4 | 4GB 64-bit SODIMM |
| SD-Card | Yes |
| M.2 SATA Connector | Yes |
| QSPI | 2 |
| USB UART/JTAG | 1 |
| RJ45 | 1 |
| SFP+ | 4 |
| USB 3.0 | 1 |
| DIP Switches | Yes |
| LEDs | Yes |
| Push Buttons | Yes |
| VESA DisplayPort 1.2 | Yes |
| FMC-HPC Connector | 2 |
| XM500 | Yes |
| I2C | Yes |
| PMBUS | Yes |
| JTAG PC4 Header | Yes |
| SD Boot | Yes |
| QSPI Boot | Yes |
| JTAG Boot | Yes |
| 12V Wall Adapter | Yes |
| ATX Power Compatible | Yes |
