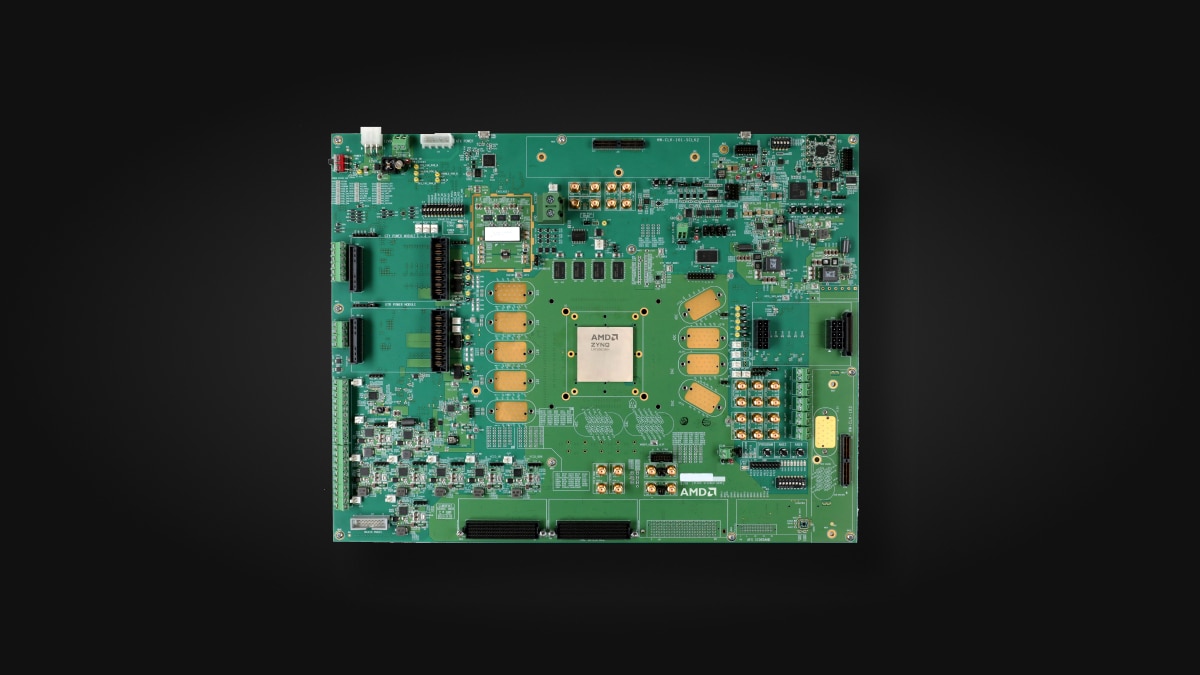

AMD Zynq™ UltraScale+™ RFSoC ZCU1285 Characterization Kit
PN: CK-U1-ZCU1285-G
Price: Contact us
Lead Time: On request
SYNCED FROM AMD.COM · 2026-10-14
Overview
The AMD Zynq™ UltraScale+™ RFSoC ZCU1285 characterization kit provides everything you need to characterize and evaluate the integrated ADCs and DACs, as well as GTY, GTR transceivers available on the Zynq UltraScale+ Gen 2 XCZU39DR RFSoC. All 16 12-bit 2.220GSPS ADCs, all 16 14-bit 6.554GSPS DACs, all 16 GTY transceivers, and all 4 GTR transceivers are accessible through Samtec BullsEye connectors. The BullsEye connector allows you to connect to custom baluns and test equipment for the highest level of flexibility in testing custom applications. Find out more and see what is included in the kit.
Device Support: Zynq UltraScale+ RFSoC
Specifications
| 12-bit, 2.058GSPS RF-ADC | 16 |
| 14-bit, 6.554GSPS RF-DAC | 16 |
| System Logic Cells (K) | 930 |
| DSP Slices | 4,272 |
| Memory (Mb) | 60.5 |
| 33G Transceivers | 16 |
| Maximum I/O Pins | 408 |
| Length | 16 inch (40.6 cm) |
| Height | 12.6 inch (30.0 cm) |
| Thickness (+/-5%) | 0.13456 inch (0.3418 cm) |
| PS DDR3 Component | 4x2GB |
| Samtec BullsEye Connector for ADC | 2 |
| Samtec BullsEye Connector for DAC | 2 |
| Samtec BullsEye Connector for GTY | 4 |
| Samtec BullsEye Connector for GTR | 1 |
| USB UART | Yes |
| DIP Switches | Yes |
| LEDs | Yes |
| Push Buttons | Yes |
| FMC-HPC Connector | 1 |
| GT SuperClock-2 Module | Yes |
| Analog SuperClock-RF2 Module | Yes |
| IIC | Yes |
| PMBUS | Yes |
| 12V Wall Adapter | Yes |
| ATX Power Compatible | Yes |
