AMD Zynq™ UltraScale+™ RFSoC ZCU208 Evaluation Kit
Overview

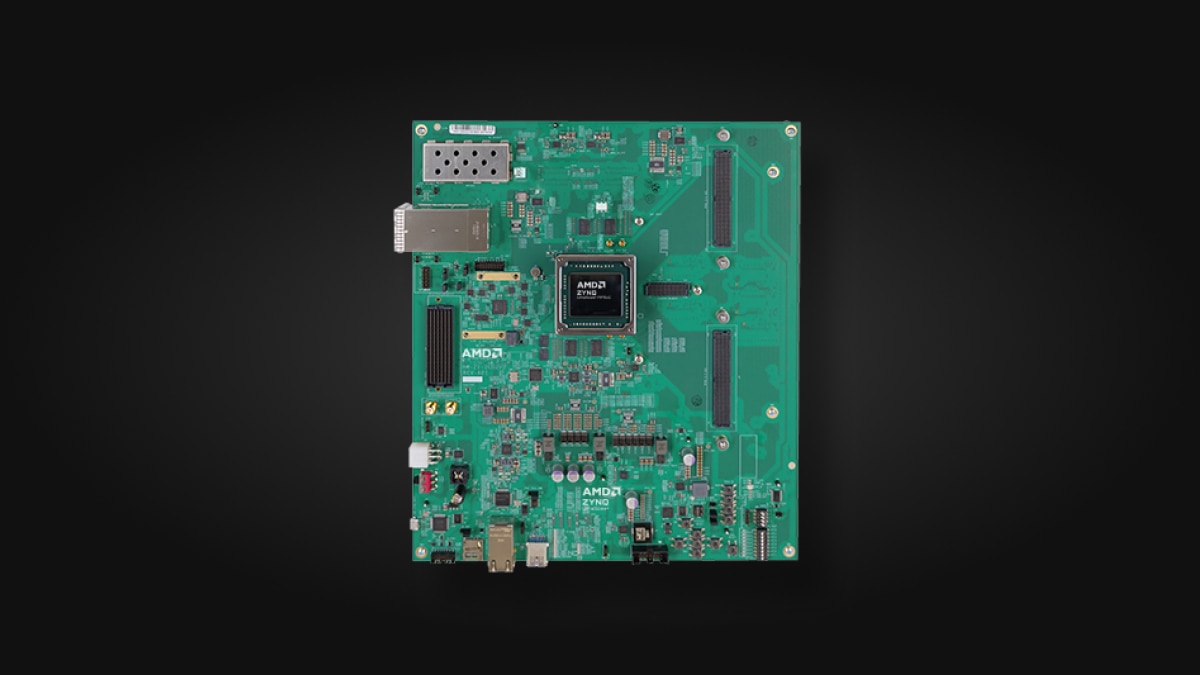

The AMD Zynq™ UltraScale+™ RFSoC ZCU208 Evaluation Kit is the ideal RF test platform for both out-of-box evaluation and cutting-edge application development. This kit features a Zynq UltraScale+ RFSoC ZU48DR, which integrates eight 14-bit 5GSPS ADCs, and eight 14-bit 10GSPS* DACs, and eight soft-decision forward error correction (SD-FEC) cores designed to jumpstart RF class applications. The combination of Arm® Cortex®-A53 and Cortex-R5 subsystems, UltraScale+ programmable logic, and the highest signal processing bandwidth in a Zynq UltraScale+ device, makes the ZCU208 evaluation kit the most comprehensive RF Analog-to-Digital signal chain prototyping platform.
Specifications
| 14-bit, 5.0GSPS RF-ADC | 8 |
| 14-bit, 10GSPS* RF-DAC | 8 |
| SD-FEC | 8 |
| System Logic Cells (K) | 930 |
| Memory (Mb) | 60.5 |
| DSP Slices | 4,272 |
| 33G Transceivers | 16** |
| Maximum I/O Pins | 347 |
| Height | 12.225 inch (31.05cm) |
| Width | 10.675 inch (27.11cm) |
| Thickness (+/-5%) | 0.119 inch (0.302cm) |
| # of 14-bit RF-ADCs | 8 |
| Max Rate (GSPS) | 10* |
| # of 14-bit RF-DACs | 8 |
| PS DDR4 | 4GB 64-bit SODIMM |
| PL DDR4 | 8GB 64-bit Component |
| MicroSD Card | 16GB |
| M.2 SATA Connector | Yes |
| QSPI | 2 |
| USB (UART/JTAG) | 1 |
| RJ-45 | 1 |
| SFP28 | 4 |
| USB 3.0 | 1 |
| DIP Switches | Yes |
| LEDs | Yes |
| Push Buttons | Yes |
| FMC+ | 1 |
| XM650 | 1 |
| XM655 | 1 |
| CLK104 | 1 |
| I2C | Yes |
| PMBUS | Yes |
| JTAG PC4 Header | Yes |
| SD Boot | Yes |
| QSPI Boot | Yes |
| JTAG Boot | Yes |
| 12V Wall Adapter | Yes |
| ATX Power Compatible | Yes |
