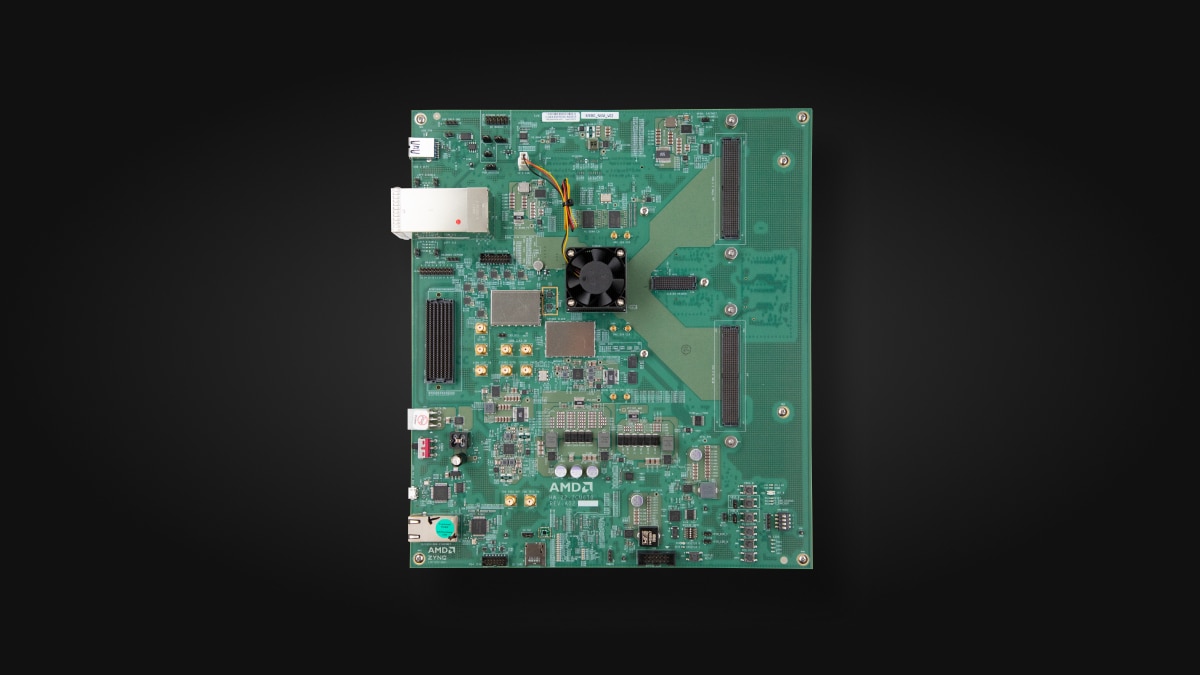

AMD Zynq™ UltraScale+™ RFSoC DFE ZCU670 Evaluation Kit
Overview
The AMD Zynq™ UltraScale+™ RFSoC DFE ZCU670 Evaluation Kit is the optimal platform for adaptive radio development and out-of-box evaluation in rapid prototyping of 5G New Radio (5G NR), radar, and a breadth of RF applications. This product is available to qualified customers. Please contact your local sales representative or visit the contact sales form. The kit features the Zynq UltraScale+ RFSoC DFE device featuring integrated RF data converters and a breadth of power-efficient 5G NR cores for a complete hardened radio subsystem. As an adaptive SoC, the device features programmable logic for hardware differentiation and adaptability to future market requirements.
Specifications
| 14-bit, 2.9GSPS RF-ADC | 8 |
| 14-bit, 5.9GSPS RF-ADC | 2 |
| 14-bit, 10GSPS RF-DAC | 8 |
| DFE | Integrated |
| System Logic Cells (K) | 489 |
| Memory (Mb) | 67.8 |
| DSP Slices | 1,872 |
| 28.21Gb/s Transceivers | 8* |
| Maximum I/O Pins | 158 |
| Height | 12.225 inch (31.05 cm) |
| Width | 10.675 inch (27.11 cm) |
| Thickness (+/-5%) | 0.119 inch (0.302 cm) |
| # of 14-bit RF-ADCs @ 2.95 GSPS | 8 |
| # of 14-bit RF-ADCs @ 5.9 GSPS | 2 |
| # of 14-bit RF-DACs @ 10* GSPS | 8 |
| PS DDR4 | 4GB 64-bit SODIMM |
| PL DDR4 | 4GB 64-bit Component |
| MicroSD Card | 16GB |
| QSPI | 4GB |
| USB (UART/JTAG) | 1 |
| RJ-45 | 1 |
| SFP28 | 4 |
| USB 3.0 | 1 |
| FMC+ | 1 |
| RFMC 2.0 | 2 |
| XM650 | 1 |
| XM755 | 1 |
| DIP Switches | 2 |
| LEDs | 4 |
| Push Buttons | 6 |
| I2C | 2 |
| PMBUS | 1 |
| JTAG PC4 Header | 1 |
| SD Boot | Yes |
| QSPI Boot | Yes |
| JTAG Boot | Yes |
| 12V Wall Adapter | Yes |
| ATX Power Compatible | Yes |
